SV14. Unique and Priority Identifiers in SystemVerilog

Overview

SystemVerilog provides three special keywords (unique, unique0, and priority) that can be used with case and if statements to provide synthesis tools with optimization hints and enable runtime checking during simulation.

Video Tutorial

Watch this comprehensive video explanation of Unique and Priority Identifiersing:

Unique and Priority Identifiers in Synthesizable SystemVerilog

Table of Contents

• Introduction
• The unique Keyword
• The unique0 Keyword
• The priority Keyword
• Practical Examples
• Common Pitfalls
• Best Practices
• Summary

Introduction

SystemVerilog provides three special keywords (unique, unique0, and priority) that can be used with case and if statements to provide synthesis tools with optimization hints and enable runtime checking during simulation.

Purpose and Benefits

These keywords serve two primary purposes:

1. Synthesis Optimization: Inform synthesis tools about the nature of case items, enabling better logic optimization
2. Simulation Checking: Provide runtime violation checking to catch design errors during verification

The main benefit is helping synthesis tools distinguish between scenarios that require:

• Parallel evaluation (when cases are mutually exclusive)
• Priority encoding (when order matters or cases may overlap)

The unique Keyword

The unique keyword indicates that case items are mutually exclusive and fully cover all possible input values.

Simulation Behavior

When using unique, the simulator performs runtime checking and issues warnings if:

• Multiple case items evaluate to true simultaneously
• No case items evaluate to true

Synthesis Implications

The unique keyword informs the synthesis tool that:

• Case items are mutually exclusive (only one can be true at a time)
• All possible input values are fully covered by the case items
• The tool can optimize for parallel evaluation instead of priority encoding
• No default case is necessary since all values are covered

Example:

typedef enum logic [2:0] {
    RED    = 3'b001,
    GREEN  = 3'b010,
    YELLOW = 3'b100
} colors_t;

colors_t current_color, next_color;

always_comb begin
    unique case (current_color)
        RED:    next_color = YELLOW;
        GREEN:  next_color = RED;
        YELLOW: next_color = GREEN;
        // No default needed - unique tells tools all cases are covered
    endcase
end

In this example, the synthesis tool can generate optimized parallel logic instead of a priority encoder because it knows:

1. Only one case can be true at a time (mutually exclusive)
2. All possible enum values are handled (fully covered)

Important Caveat for Using unique Keyword

One caveat for using the unique keyword without fully covered case or if statements (and without default or else clauses) is that synthesis tools may generate smaller circuits compared to fully covered case/if statements with explicit default/else handling. However, the resulting circuit could be less robust to environmental noise, and if the circuit state changes to an undefined state, the circuit behavior becomes unpredictable.

Therefore, it is more robust to always fully cover case and if statements. In today’s technology, removing the default statement may only reduce a small number of transistors, but it does not significantly affect the overall circuit area or power consumption, while potentially compromising reliability.

The unique0 Keyword

The unique0 keyword indicates that at most one case item can be true, but not all possible values need to be covered.

Simulation Behavior

The simulator only issues a warning if:

• Multiple case items evaluate to true simultaneously
• No warning if no case items are true

Synthesis Implications

The unique0 keyword tells the synthesis tool:

• Case items are mutually exclusive
• Not all possible values are covered by case items
• May infer latches for uncovered input values
• Can still optimize for parallel evaluation of covered cases

Important Warning

Do NOT use unique0 for RTL modeling. The ability for no cases to match can lead to unintentional latch inference, which is generally undesirable in synchronous digital design.

The priority Keyword

The priority keyword specifies that the order of case items is important and they should be evaluated sequentially in the order written.

Simulation Behavior

The simulator issues a warning if:

• No case items evaluate to true
• No warning for multiple matches (first match wins)

Synthesis Implications

The priority keyword informs the synthesis tool:

• Case items should be evaluated in order
• First matching condition wins
• Should implement a priority encoder
• Optimizes for sequential rather than parallel evaluation

Practical Examples

Example 1: Optimized State Machine with unique

typedef enum logic [1:0] {
    IDLE = 2'b00,
    WORK = 2'b01,
    DONE = 2'b10
} state_t;

state_t current_state, next_state;

always_comb begin
    unique case (current_state)
        IDLE: next_state = start ? WORK : IDLE;
        WORK: next_state = finished ? DONE : WORK;
        DONE: next_state = reset ? IDLE : DONE;
        // All enum values covered - synthesis optimizes for parallel evaluation
    endcase
end

Example 2: Priority Interrupt Controller with priority

module priority_interrupt_decoder(
    input  logic [3:0] interrupt_req,   // 4 interrupt request inputs
    output logic [1:0] interrupt_id,    // Encoded interrupt ID
    output logic       interrupt_valid  // Valid interrupt present
);
    always_comb begin
        priority case (interrupt_req) inside
            4'b???1: begin  // Interrupt 0 (highest priority)
                interrupt_id    = 2'b00;
                interrupt_valid = 1'b1;
            end
            4'b??10: begin  // Interrupt 1
                interrupt_id    = 2'b01;
                interrupt_valid = 1'b1;
            end
            4'b?100: begin  // Interrupt 2
                interrupt_id    = 2'b10;
                interrupt_valid = 1'b1;
            end
            4'b1000: begin  // Interrupt 3 (lowest priority)
                interrupt_id    = 2'b11;
                interrupt_valid = 1'b1;
            end
            default: begin  // No interrupts
                interrupt_id    = 2'b00;
                interrupt_valid = 1'b0;
            end
        endcase
    end
endmodule

This example demonstrates proper use of priority where:

• Multiple interrupts can be active simultaneously
• Higher-numbered bit positions have higher priority
• The priority encoder ensures only the highest priority interrupt is serviced

Common Pitfalls

Misusing unique with Incomplete Coverage

Incorrect Usage:

module address_decode (
    input  logic [1:0] select,
    output logic       data
);
    always_comb begin
        data = 1'b0; // Default assignment
        unique case (select)
            2'b10: data = 1'b1;
            // ERROR: Missing cases for 2'b00, 2'b01, 2'b11
        endcase
    end
endmodule

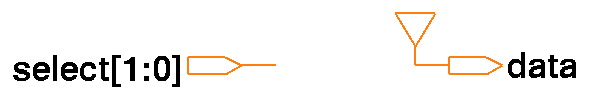

Generated library-independent circuit

Problems with this approach:

1. unique tells the synthesis tool that all possible values are covered, but they’re not
2. The tool optimize away the default assignment data = 1'b0
3. Undefined behavior for uncovered input values (2’b00, 2’b01, 2’b11)

Correct Approach:

module address_decode (
    input  logic [1:0] select,
    output logic       data
);
    always_comb begin
        data = 1'b0; // Default assignment
        case (select)  // Remove 'unique' - not all cases covered
            2'b10: data = 1'b1;
            // Default assignment handles all other cases
        endcase
    end
endmodule

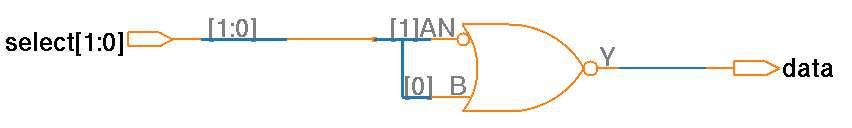

Generated library-independent circuit

Best Practices

When to Use Each Keyword

Keyword	Use Case	Synthesis Result	Best For
unique	Mutually exclusive, fully covered cases	Parallel evaluation logic	State machines, complete decoders
priority	Order-dependent evaluation	Priority encoder	Interrupt controllers, nested conditions
unique0	Mutually exclusive, partially covered	Parallel + potential latches	Avoid in RTL

Design Guidelines

1. Use unique when you have complete, mutually exclusive coverage
   • All possible input combinations are explicitly handled
   • Cases cannot overlap
   • Want optimized parallel logic
2. Use priority when order matters
   • Multiple conditions might be true simultaneously
   • Want to service the first (highest priority) match
   • Need priority encoder behavior
3. Avoid unique0 in synthesizable RTL
   • Can lead to unintentional latch inference
   • Better to use regular case with explicit defaults
4. Let simulation catch violations
   • Use these keywords during verification to catch design errors
   • Address any warnings that appear during simulation

Summary

The unique, unique0, and priority keywords are powerful SystemVerilog features that:

• Improve synthesis results by providing optimization hints to tools
• Enable error checking during simulation to catch design mistakes
• Make design intent clearer to both tools and other engineers

Key takeaways:

• Use unique for complete, mutually exclusive case coverage to get optimized parallel logic
• Use priority when evaluation order matters to get optimized priority encoders
• Avoid unique0 in RTL design due to potential latch inference issues
• Always verify your assumptions during simulation - let the tools catch violations
• These keywords are about optimization and verification, not changing fundamental logic behavior

When used correctly, these keywords help create more efficient hardware implementations while catching potential design errors during the verification process.
